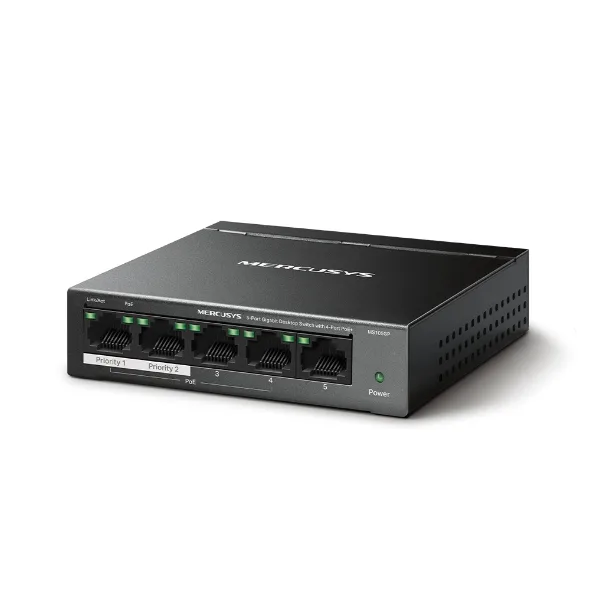

MS105GP V2 5-Port Gigabit Desktop Switch with 4-Port PoE+
- Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
Τεχνικά Χαρακτηριστικά :
- Hardware
- Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
- Dimensions
- 99.8*98*25mm
- PoE Ports
- RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W - Interfaces
- 5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
- External Power Adapter (Output: 53.5V/1.31A)
- Installation
- Desktop
Wall Mount
- Data Rates
- 10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex - Jumbo Frame
- 9 KB
- LED
- Ethernet Ports (1, 2, 3, 4, 5), Power
- MAC Address Table
- 2K
- Max Power Consumption
- 3.13W（220 V / 50 Hz, no PD connected）
75.15W（220 V / 50 Hz, with 65W PD connected）
- Max Heat Dissipation
- 10.64 BTH/h （no PD connected)
255.51 BTH/h（with 65W PD connected）
- Software
- Transfer Method
- Store and Forward
- Management
- Plug and Play
- Advanced Features
- 802.3x Flow Control
IGMP Snooping V1/V2/V3
Isolation Mode
Extend Mode
- Others
- Package Contents
- • 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
• Power Adapter
• Quick Installation Guide - Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensingΓια περισσότερα Switch πατήστε εδώ
